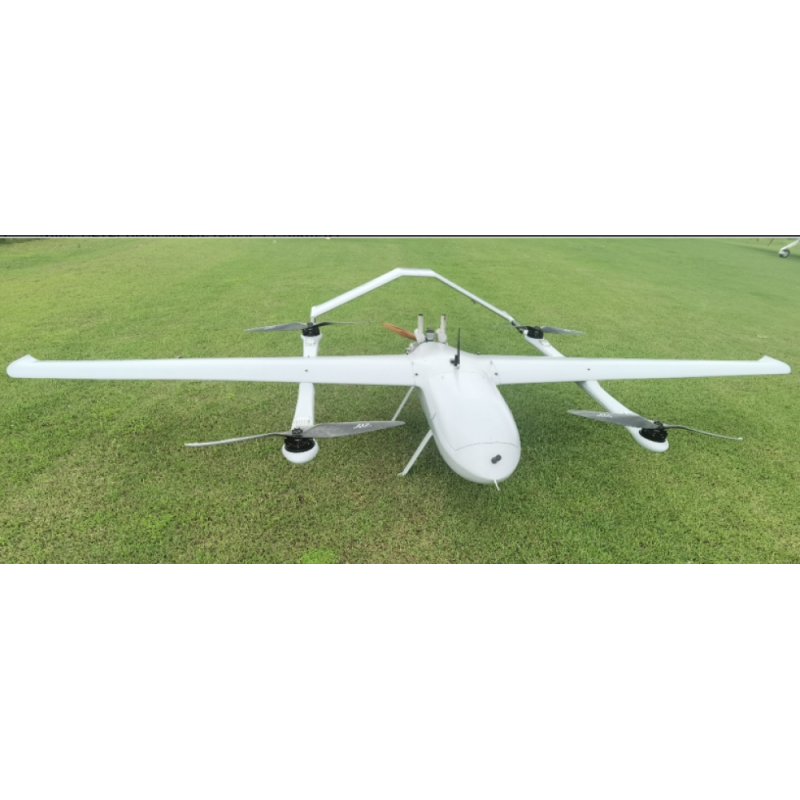

90KG Oil-propelled Vertical Fixed-wing UAV

Overall layout: 4+1 composite wing
Maximum take-off weight: 95kg
Wingspan: 4800mm
Fuselage length: 2580mm
Fuselage height: 845mm
Maximum payload: 25kg
Maximum flight time: 10h @ Empty load Flight time: 3.5h @ 25kg counterweight , 10h@5kg counterweight
stall speed (full load): 27m/s (99km/h)
Economic cruising speed: 28m/s~33m/s (100km/h~120km/h)
Maximum level flight speed: 42m/s (150km /h)
Maximum flight altitude: 4500m
IP protection level: IP55
Working environment temperature: -20°C to 50°C
Power battery: 12S-16000mAh*4
Maximum wind resistance: 12m/s (level 6 wind)
Transportation size: 2130* 1200*1010mm   2.58CBM
Transport weight: 280kg

Accesories :
Aircraft platform*1 (including body*1, motor + ESC + propellers*1, flight control and navigation system*1, steering gear*4, engine+propeller*1) Charger*1 Battery*1 Radio*1 Remote control*1 Transport box*1
