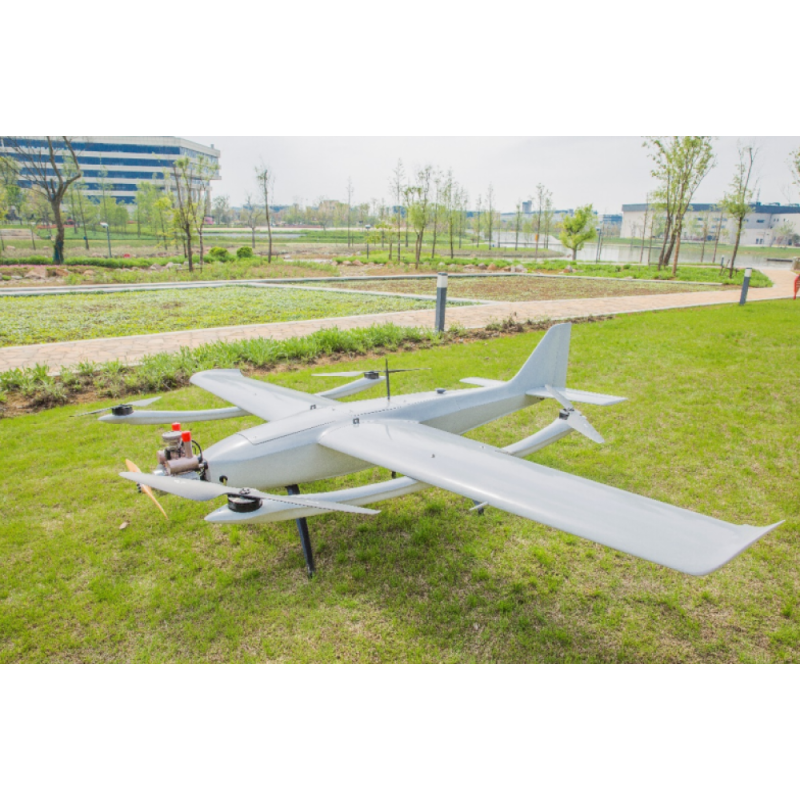

40KG Oil-powered Vertical Fixed-wing UAV

Overall layout: 4+1 composite wing
Maximum take-off weight: 40kg
Wingspan: 3300mm
Fuselage length: 2600mm
Fuselage height: 754mm
Maximum payload: 10kg
Maximum flight time: 8h @ Empty load Flight time: 5h @ 5kg counterweight
stall Speed (full load): 22m/s (80km/h)
Economic cruising speed: 28m/s~33m/s (100km/h~120km/h)
Maximum level flight speed: 36m/s (130km/h)
Maximum flight altitude: 4500m
IP protection level: IP55
Working environment temperature: -20°C to 50°C
Power battery: 12S-10000mAh*2
Maximum wind resistance: 12m/s (level 6 wind)
Transport size: 1700*440*650mm (wing) , 1600*740*720mm (body)    1.34CBM
Transportation weight: 160kg

Accesories :
Aircraft platform*1 (including body*1, motor + ESC + propellers*4, flight control and navigation system*1, steering gear*4, engine+propeller*1) Charger*1 Battery*1 Radio*1 Remote control*1 Transport box*1
