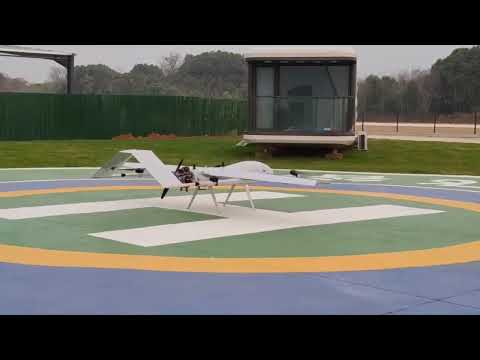

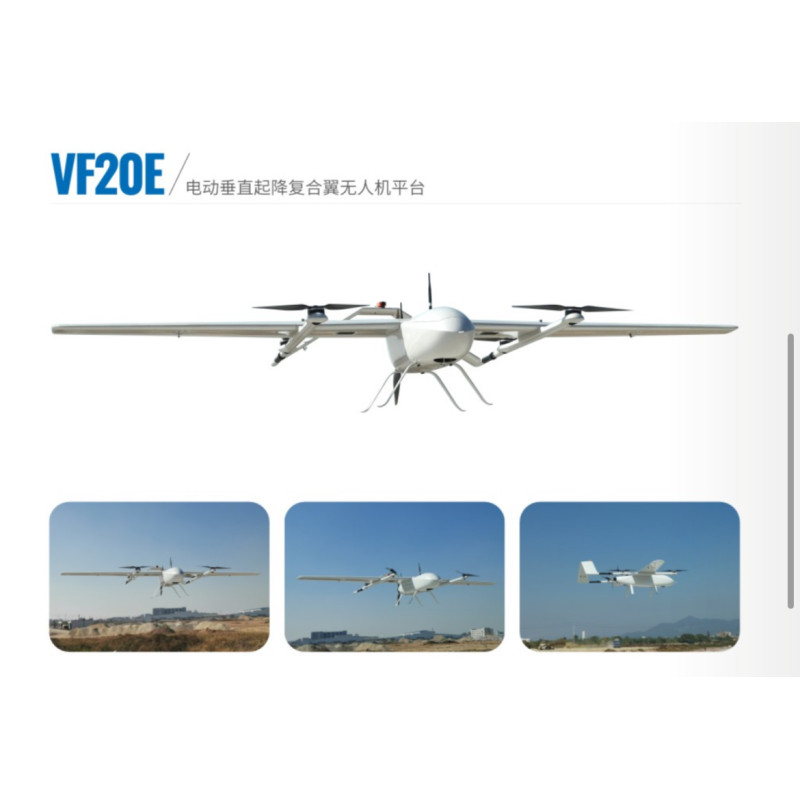

20KG Electric Vertical Fixed- wing UAV

Overall layout: 4+1 composite wing Maximum take-off weight: 23kg Wingspan: 3200mm

Fuselage length: 1800mm

Fuselage height: 680mm

Maximum payload: 5kg

Maximum flight time: 150h @ Empty load

Flight time: 90min @ 5kg counterweight

stall Speed (full load): 18m/s (65km/h)

Economic cruising speed: 20m/s~25m/s (72km/h~90km/h) Maximum level flight speed: 31m/s (111km/h)

Maximum flight altitude: 4500m

IP protection level: IP55

Working environment temperature: -20°C to 50°C

Power battery: 6S-38000mAh*2

Maximum wind resistance: 12m/s (level 6 wind) Transport size: 1410*675*570mm

Transport weight: 80kg

Accesories :

Aircraft platform*1 (including body*1, motor + ESC + propellers*5, flight control and navigation system*1, steering gear*4) Charger*1 Battery*1 Radio set*1 Remote control*1 Transport box*1
