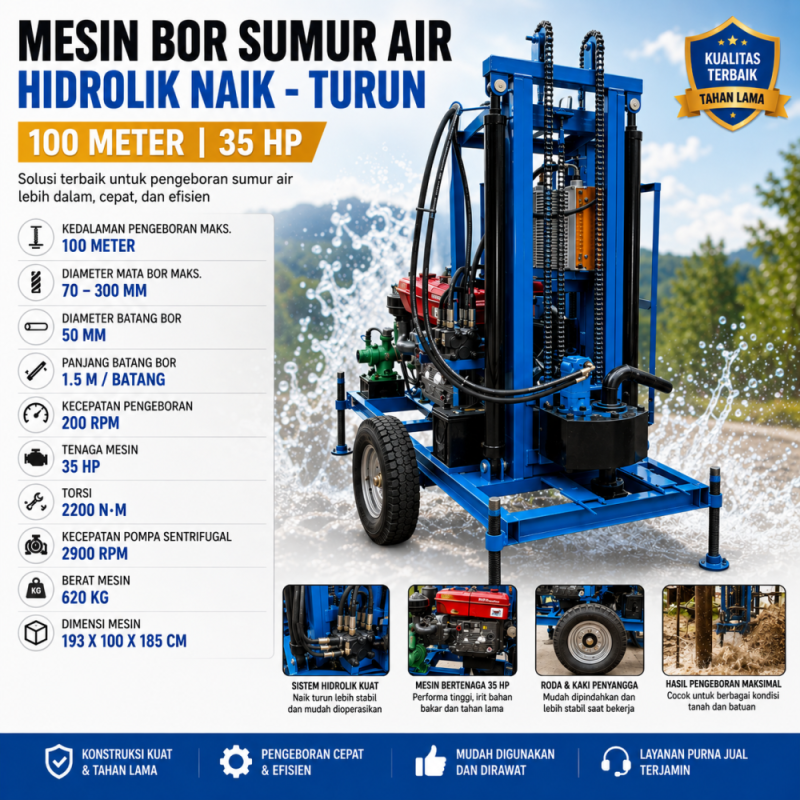

100 Meter Hydraulic Water Well Drilling Rig – 35 HP

Jenis Produk： Mesin Bor Sumur Air Hidrolik
Kedalaman Pengeboran Maks： 100 m
Diameter Mata Bor Maks： 70–300 mm
Diameter Batang Bor： 50 mm
Panjang Batang Bor： 1,5 m/batang，100meters
Kecepatan Pengeboran ： 200 RPM
Tenaga Mesin： 35 HP
Torsi： 2200 N·m
Kecepatan Pompa Sentrifugal： 2900 RPM
Berat Pompa Sentrifugal ： 35 kg
Berat Mesin： 620 kg
Dimensi Mesin：193 × 100 × 185 cm

Including:
1. 1pc *3 inch Alloy drill bit
2. 1Pc* 3 inch PDC rock drill bit
3. 1pc * 4 inch Alloy drill bit
4. 1Pc* 4 inch PDC Rock drill bit
5. 50mm Drill Pipe 100meter , 1.5meter/pc
6. other accessories : Radiator, electric starter, battery, water pump, water hose, power generation ball, traction wheel, repair kit, rod remover, water bag, faucet, shake handle, filter, raise the liftig ring.
